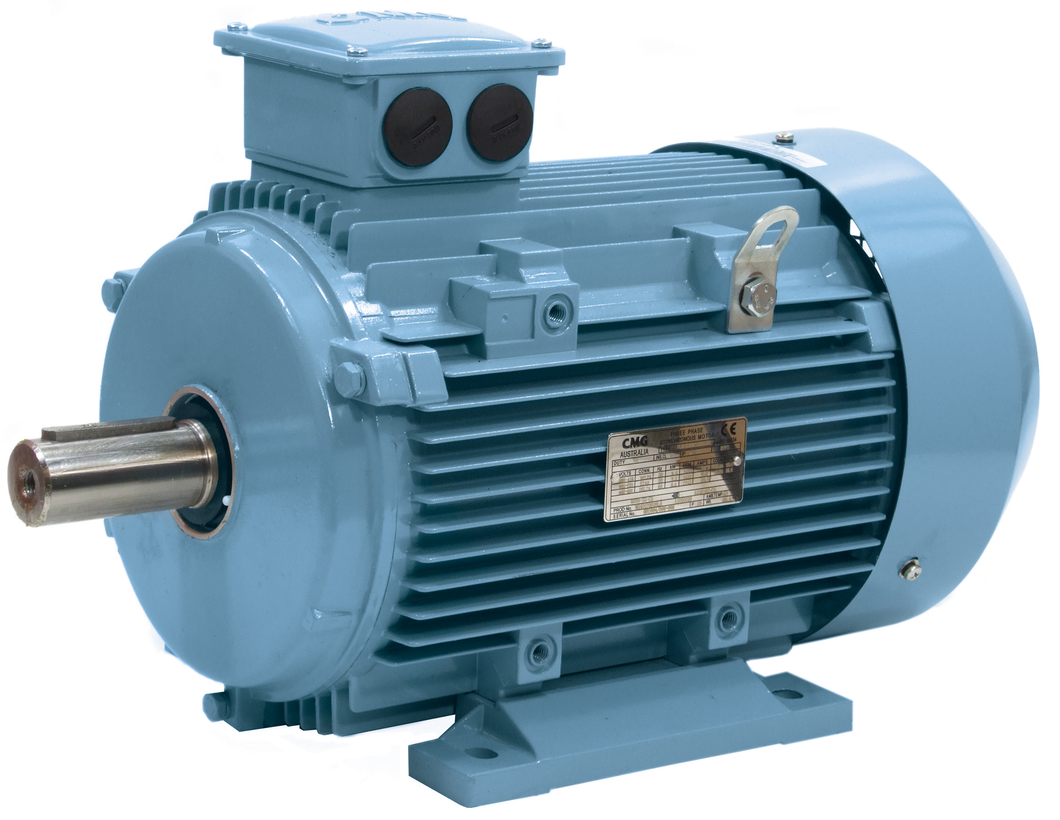

0.75 kw CMG SLA/HLA 3 Phase Aluminium 2 Pole

0.75 kw CMG SLA/HLA 3 Phase Aluminium 2 Pole

Regular price
$0.00
Sale price
$0.00

SLA Series
The SLA series of motors are enhanced performance motors built in light weight, all aluminium frames.

.75 kw

2 Pole

80 Frame

19 mm shaft size

2850 rpm

Full current load 1.5 (A)

Features and Benifits
  • Three phase
  • Cast aluminium
  • MEPS (2002) compliant (Eff2)
  • 2, 4, 6 and 8 pole
  • 0.09 to 18.5 kW
  • IP55
  • B3, B5, B14A, multi and pad mounting
  • Top mounted terminal box standard (rotatable)
  • Light weight
  • Multi speed available
  • Standards and Specifications

  • International Standard IEC 60034 and IEC 60072
  • Australian Standard AS1359
  • Certification

  • SLA CE Declaration
  • Application

  • Ideal for the OEM market
  • Ideal for alloy gearboxes
  • Locked drive end bearing on all flange mounted motors from 90 to 160 frame is ideal for pump applications where minimal axial shaft movement is critical
